SpiceCreator Pro

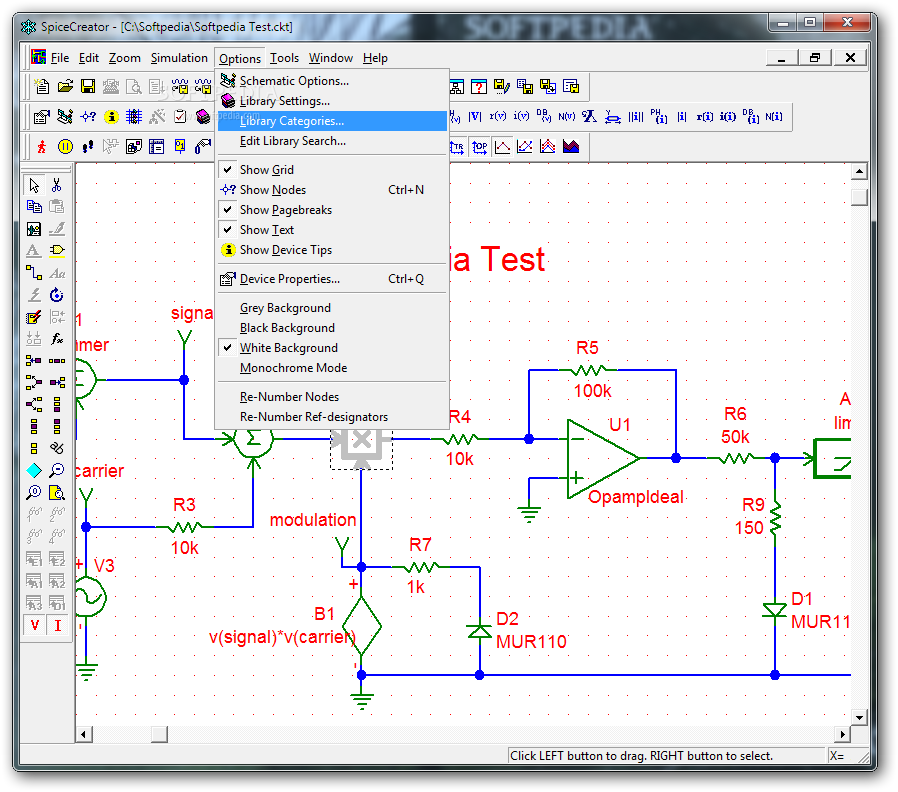

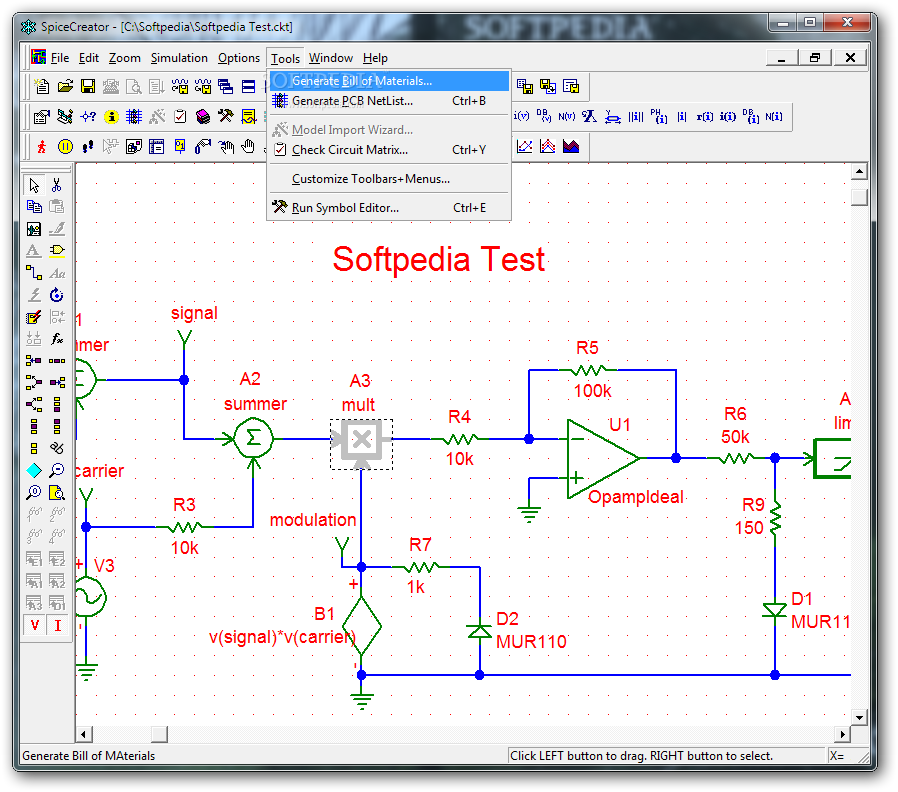

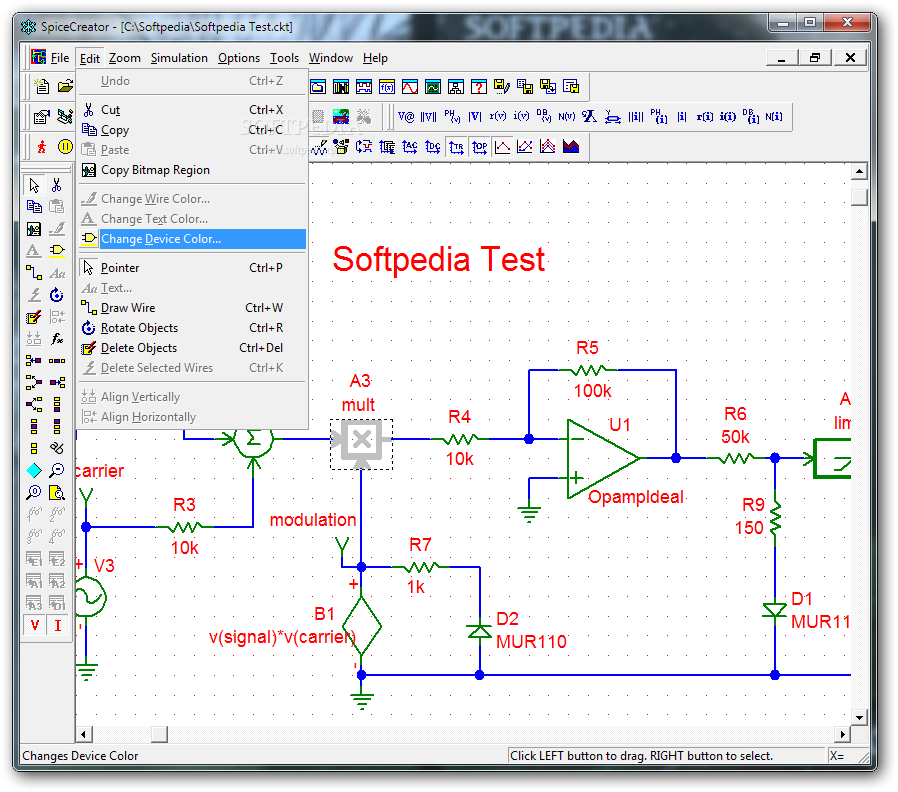

SpiceCreator Pro is a handy tool for managing your electrical projects. With this software, you can easily create and test electrical circuits, design schematics, and run simulations. It has a clean and user-friendly interface packed with useful tools to get you started.

Quick Installation

The best part? SpiceCreator Pro installs super quickly! You won't have to deal with any complicated setup before jumping in. The layout is simple, making it easy to navigate between different sections without feeling overwhelmed.

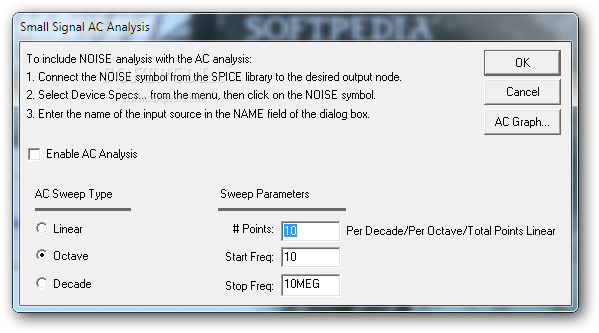

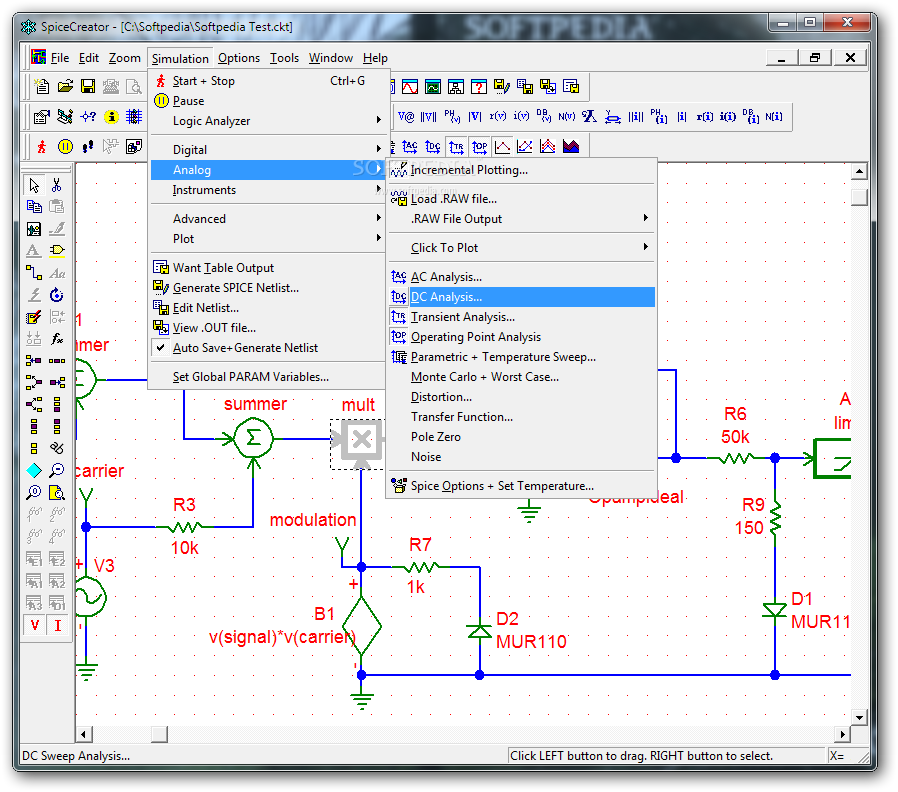

Powerful Circuit Simulation

This software comes equipped with three built-in circuit simulators, including the industry-standard Spice3F5 and XSpice extensions. It can even operate as a standalone simulator. Plus, there’s an API that lets external programs control the simulator—pretty cool!

Importing Made Easy

You can import any SPICE3 or XSPICE netlist text without needing the built-in schematic. This feature is super helpful for OEM partners who already have their own schematic editor but want to connect it to an external simulator for tasks like cross probing or plotting graphs.

Built-in Virtual Instruments

SpiceCreator Pro also includes several virtual instruments such as a multimeter that measures volts, ohms, current, and power. It even shows complex numbers to help engineers and students get more out of their readings.

Advanced Logic Analysis

If you're into logic analysis, this software has got you covered! You can single-step through your circuits and set breakpoints based on edge or level sensitivity. There’s also pattern triggering for combinational breakpoints—very useful when troubleshooting.

Scripting for Results

The scripting language allows you to process simulation results easily. You can even draw and annotate directly on the simulation results graph! This makes analyzing your work much simpler.

In summary, SpiceCreator Pro is an awesome choice for anyone looking to create and test electrical circuits efficiently. Whether you're an engineer or a student, this software has the tools you need!
